ELEGOO Presoldered Nano Board USB-C with Cable Compatible with Arduino 3PC

ELEGOO Presoldered Nano Board USB-C with Cable Compatible with Arduino 3PC

£13.10 GBP
£12.02 GBP £13.10 GBP
Sale Sold out
Taxes included. Shipping calculated at checkout.
Size
ELEGOO

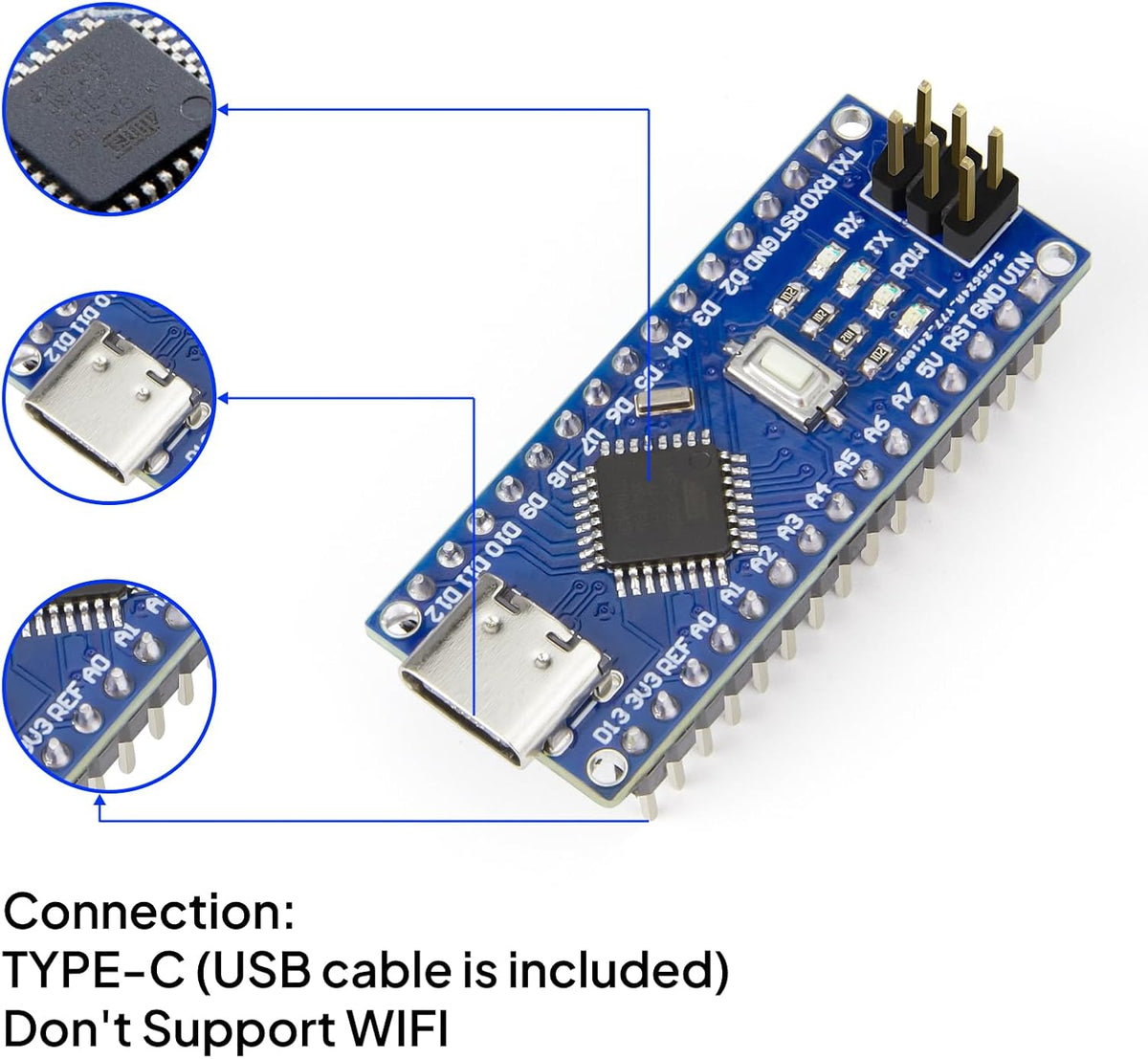

The ELEGOO Nano Board is a small, complete, and breadboard-friendly board based on the ATmega328P and it uses a USB-C connector and supports USB-A to USB-C data connections.

The ELEGOO Nano can be powered via USB-C connection, 7-12 V unregulated external power supply (pin 30), or 5 V regulated external power supply (pin 27).

The ELEGOO Nano has a variety of facilities for communicating with a PC or other microcontrollers.

nano
nano USB-C

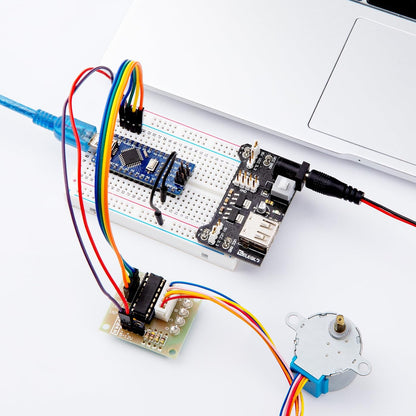

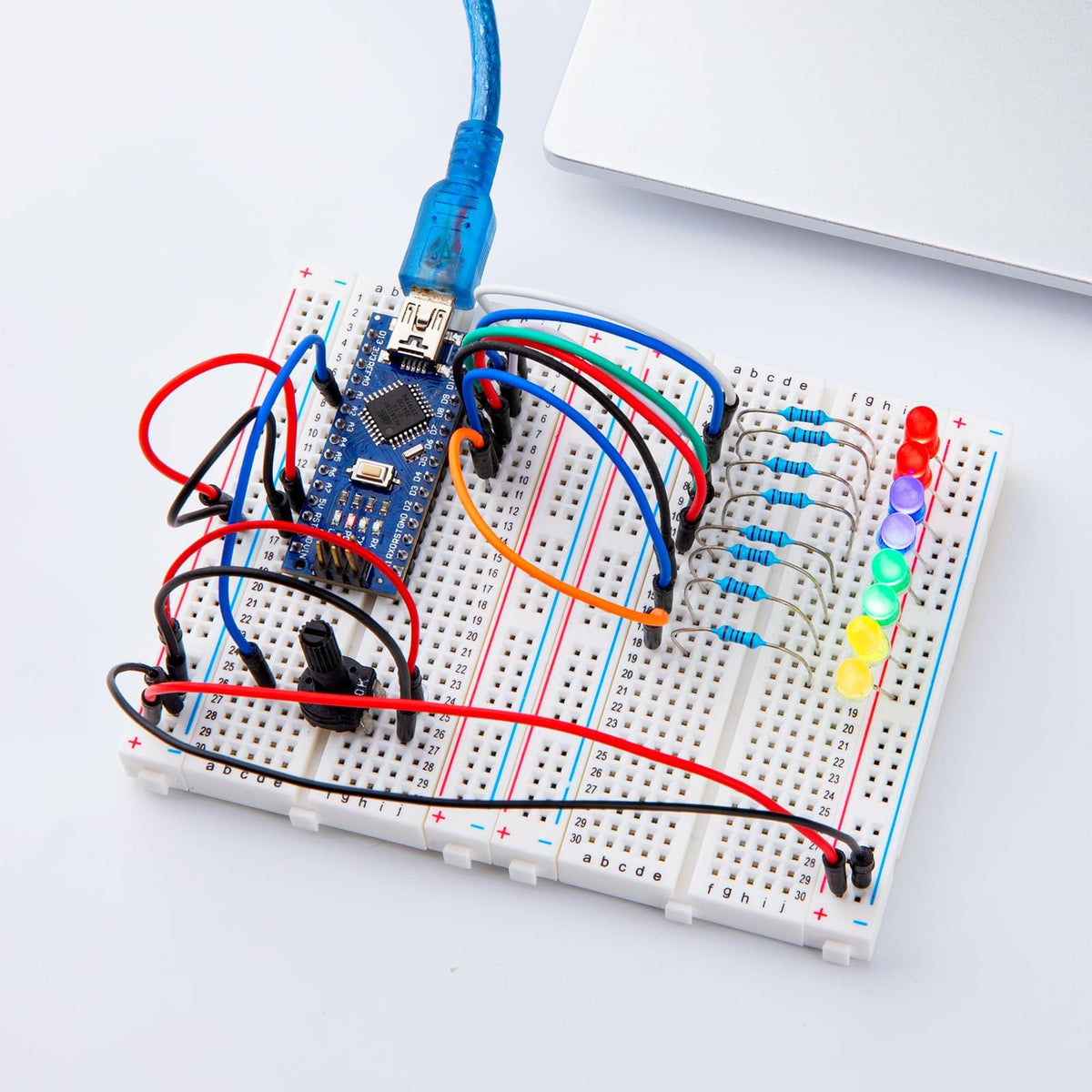

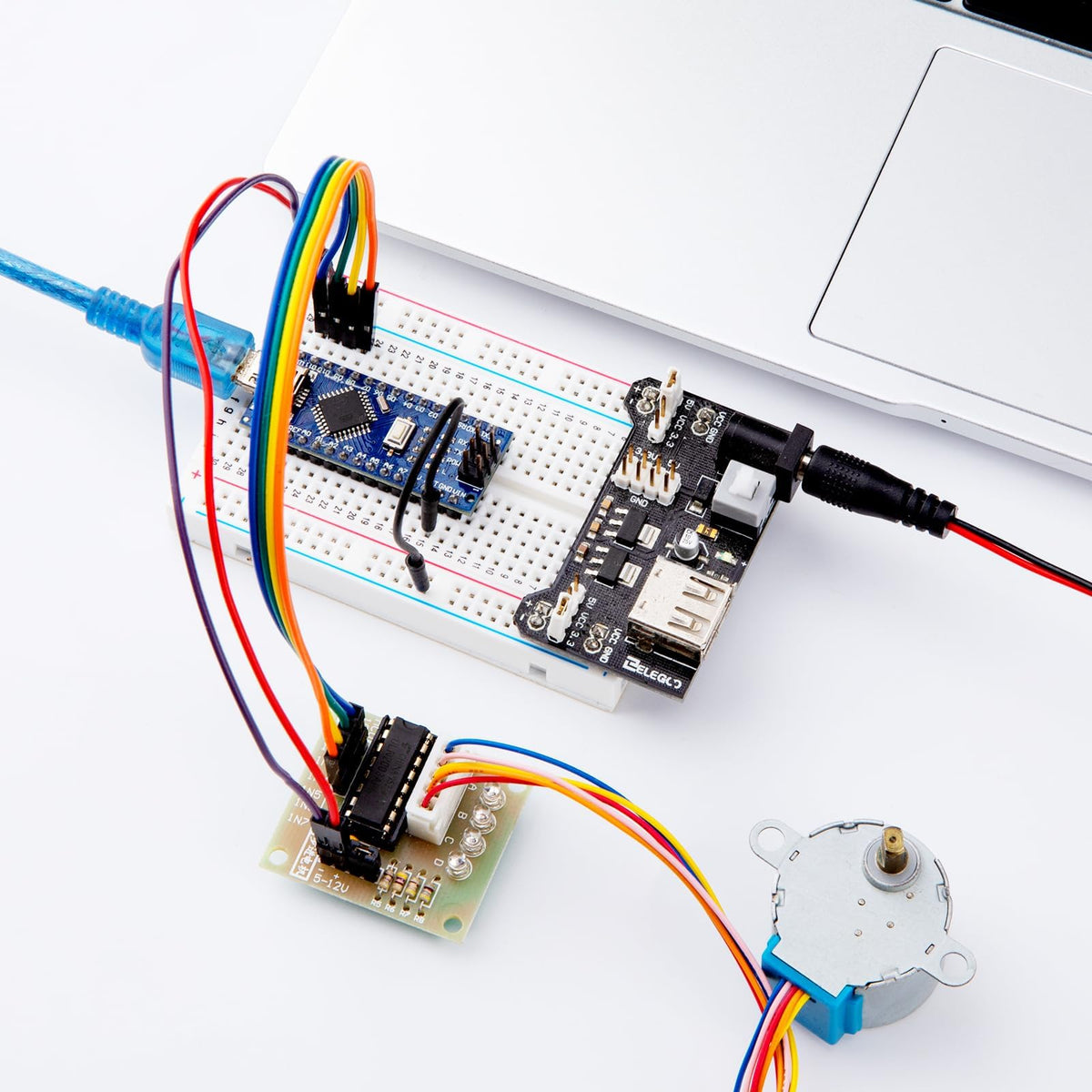

Classic LED Project with Nano Board

This example project shows the simplest thing you can do with an ELEGOO Nano to see physical output: it blinks the on-board LED just like the star in the sky.

Hardware needed for this project:

1 x Nano Board

1 x USB-C Cable

1 x Breadboard

2 x Wires

nano USB-C

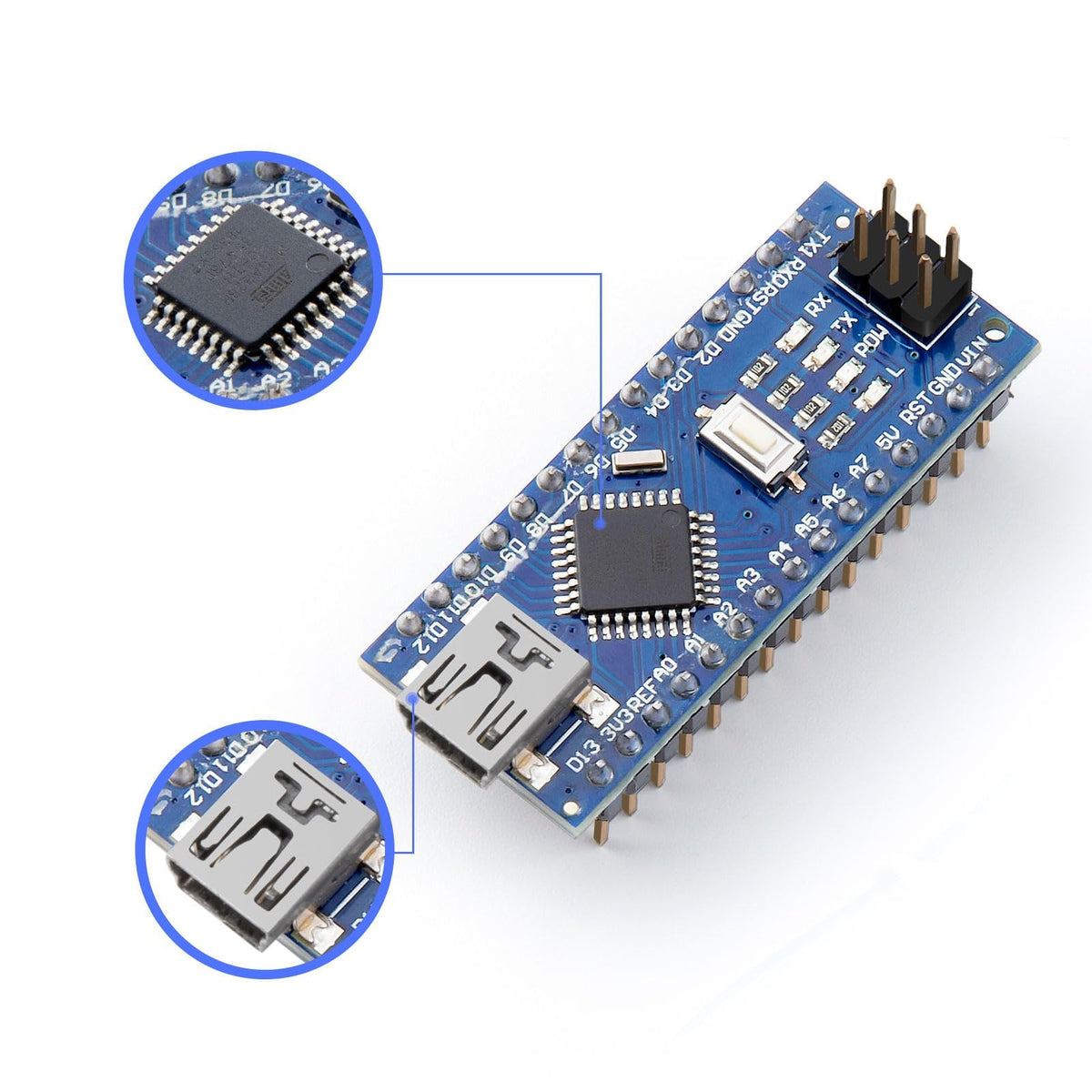

The Nano is a small, complete, and breadboard-friendly board based on the ATmega328P. The ELEGOO Nano V3.0 is a compact ATmega328P-based controller board designed for breadboard prototyping, embedded electronics and space-limited projects. It lacks only a DC power jack, and works with a USB-C cable instead of a standard one.

You could download the driver of ELEGOO Nano V3.0 from ELEGOO official website.

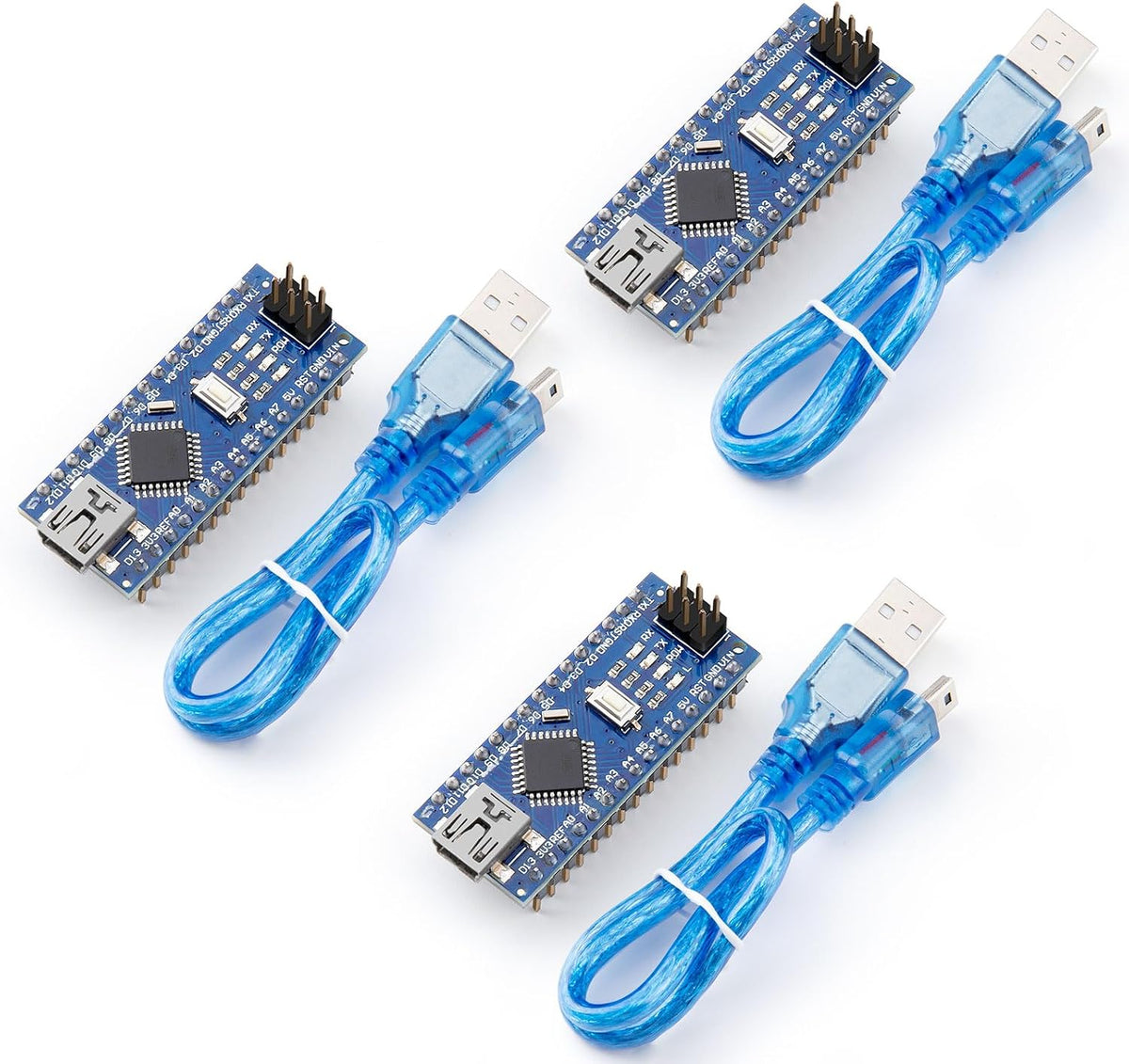

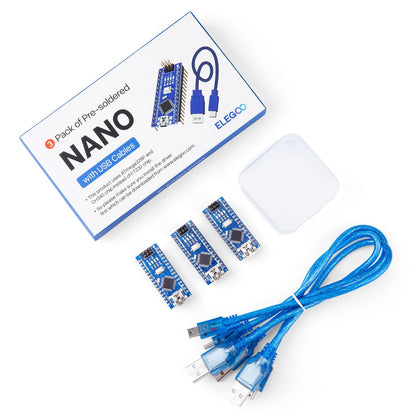

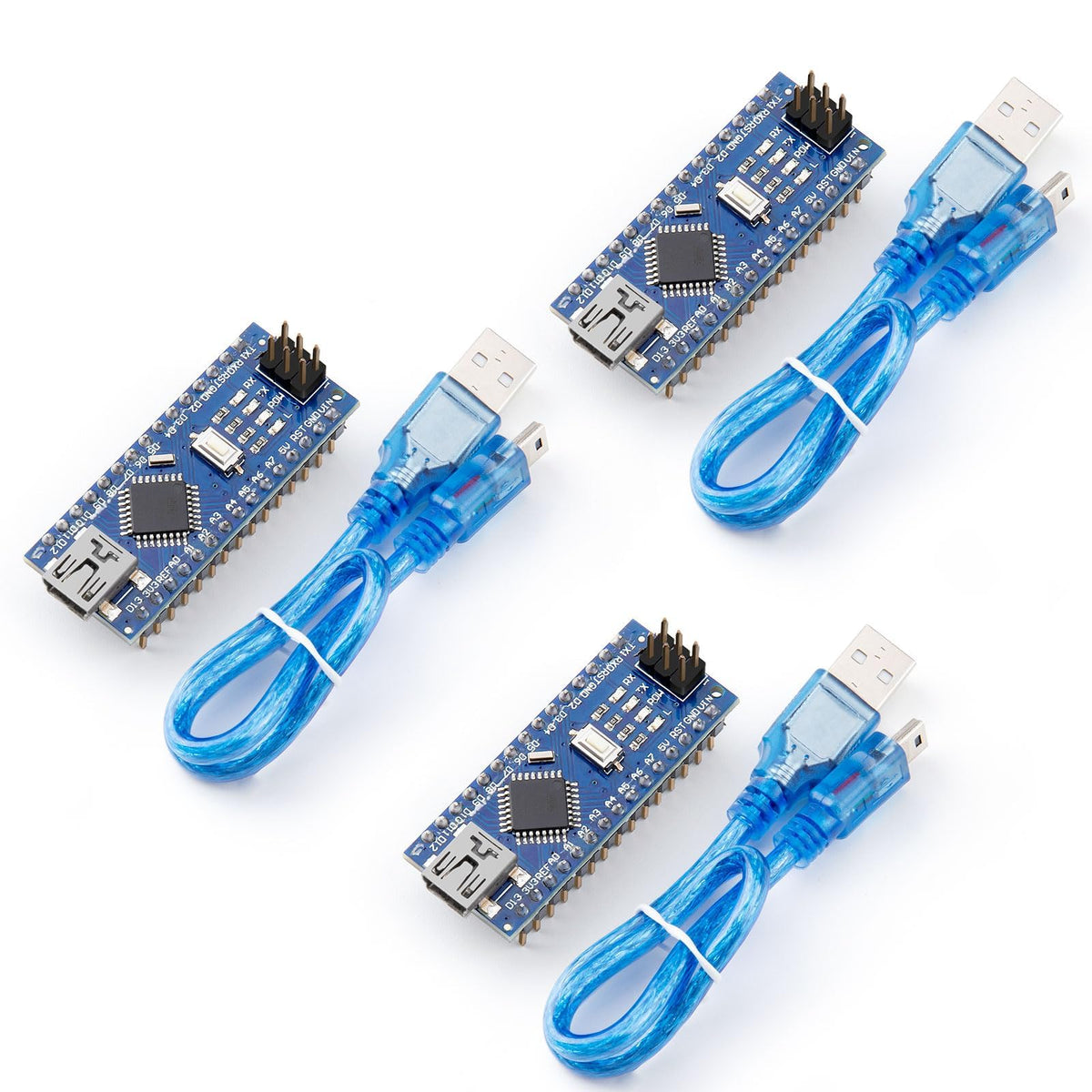

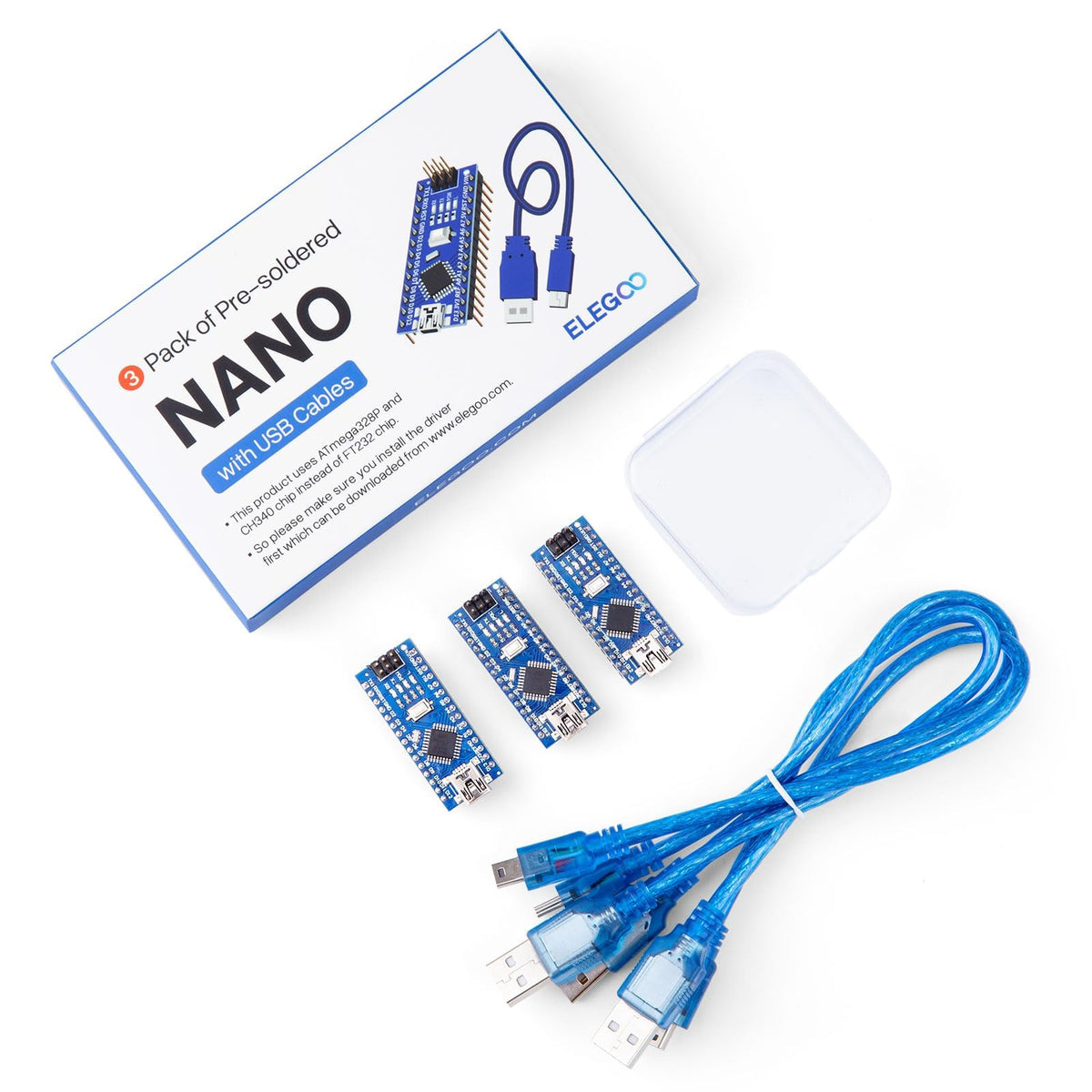

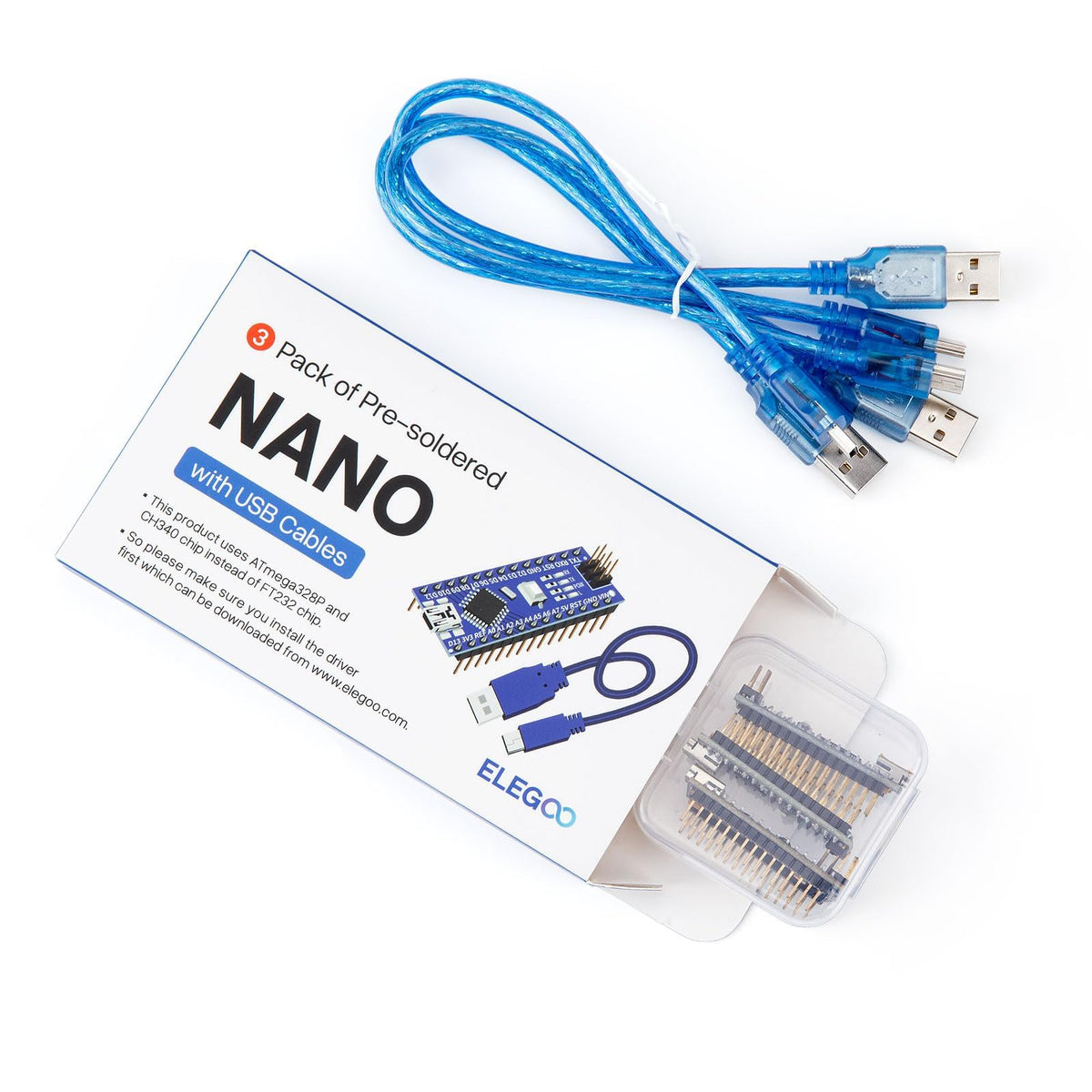

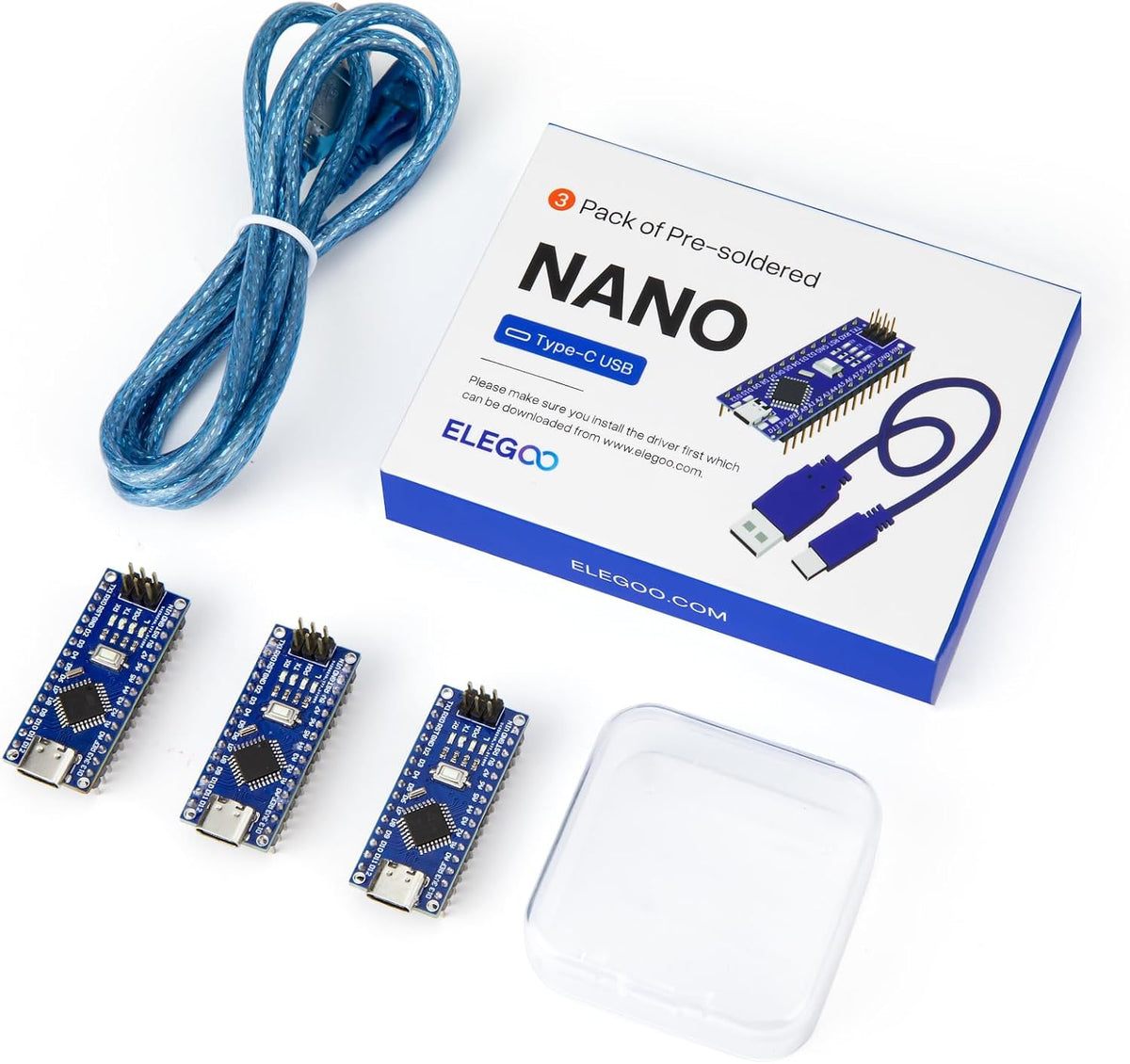

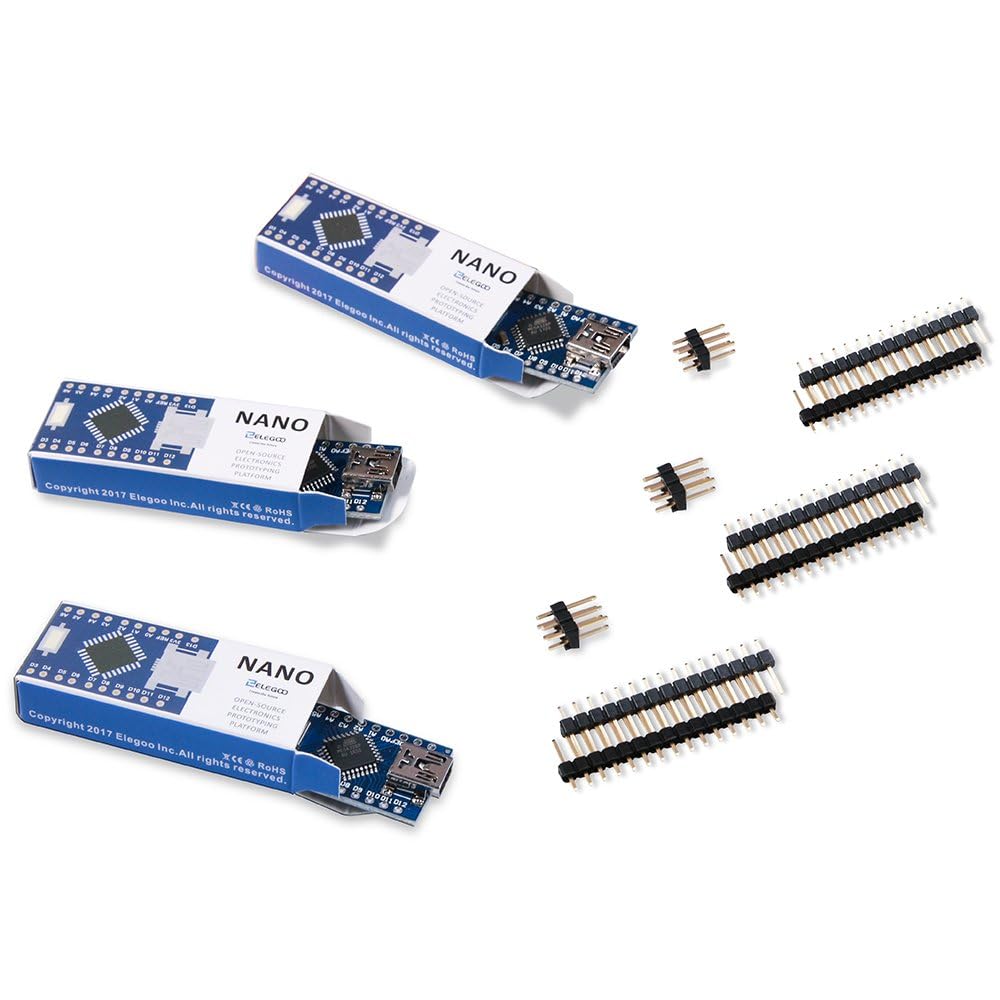

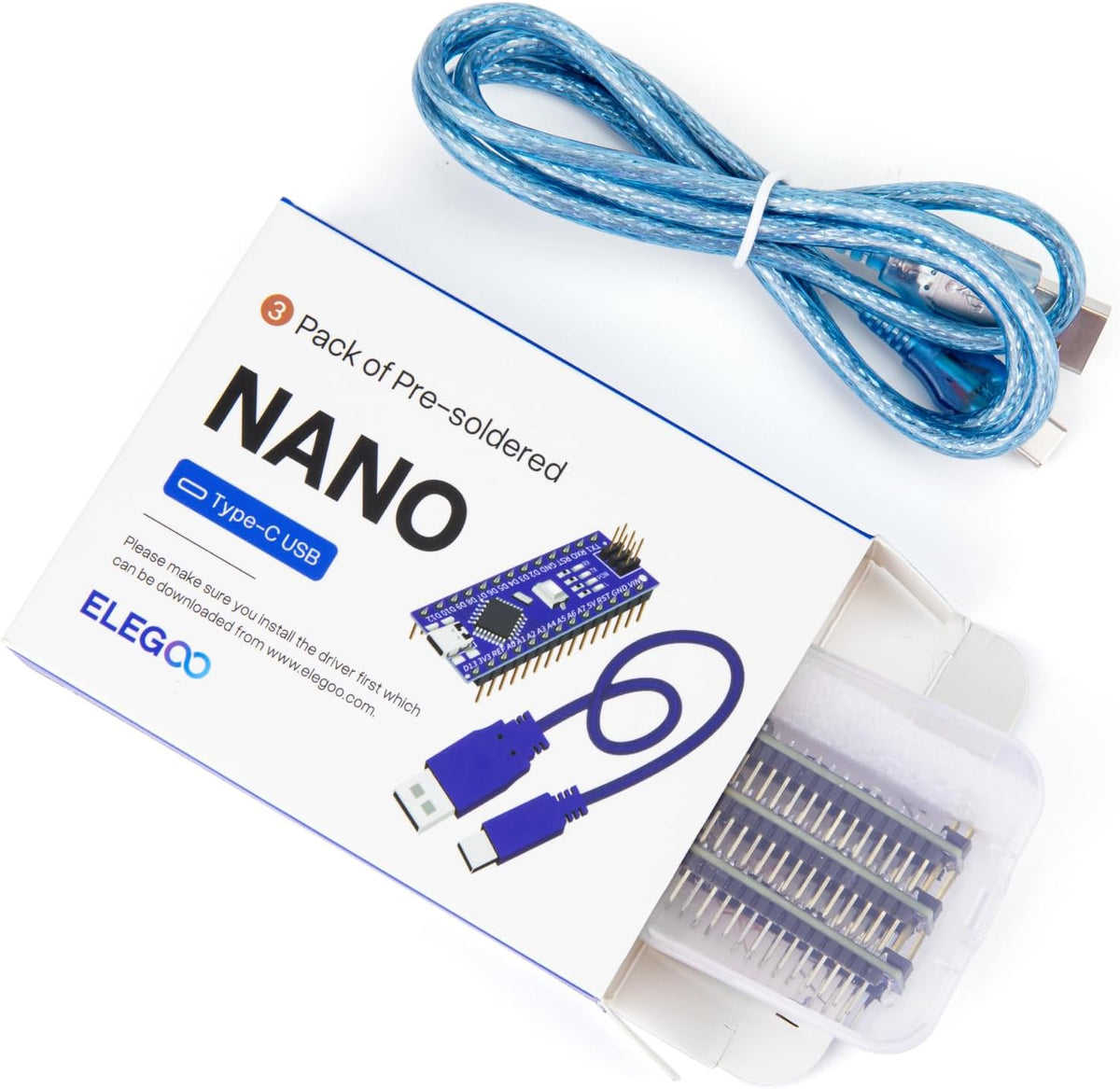

Package Includes:

3 x Pre-soldered Nano Boards

1 x USB Cable

Note: Only USB-A to USB-C cable is supported; USB-C to USB-C cable is not supported at this time.

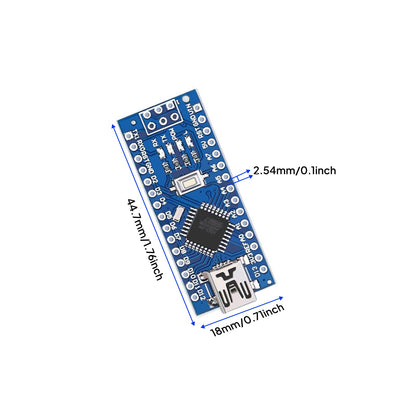

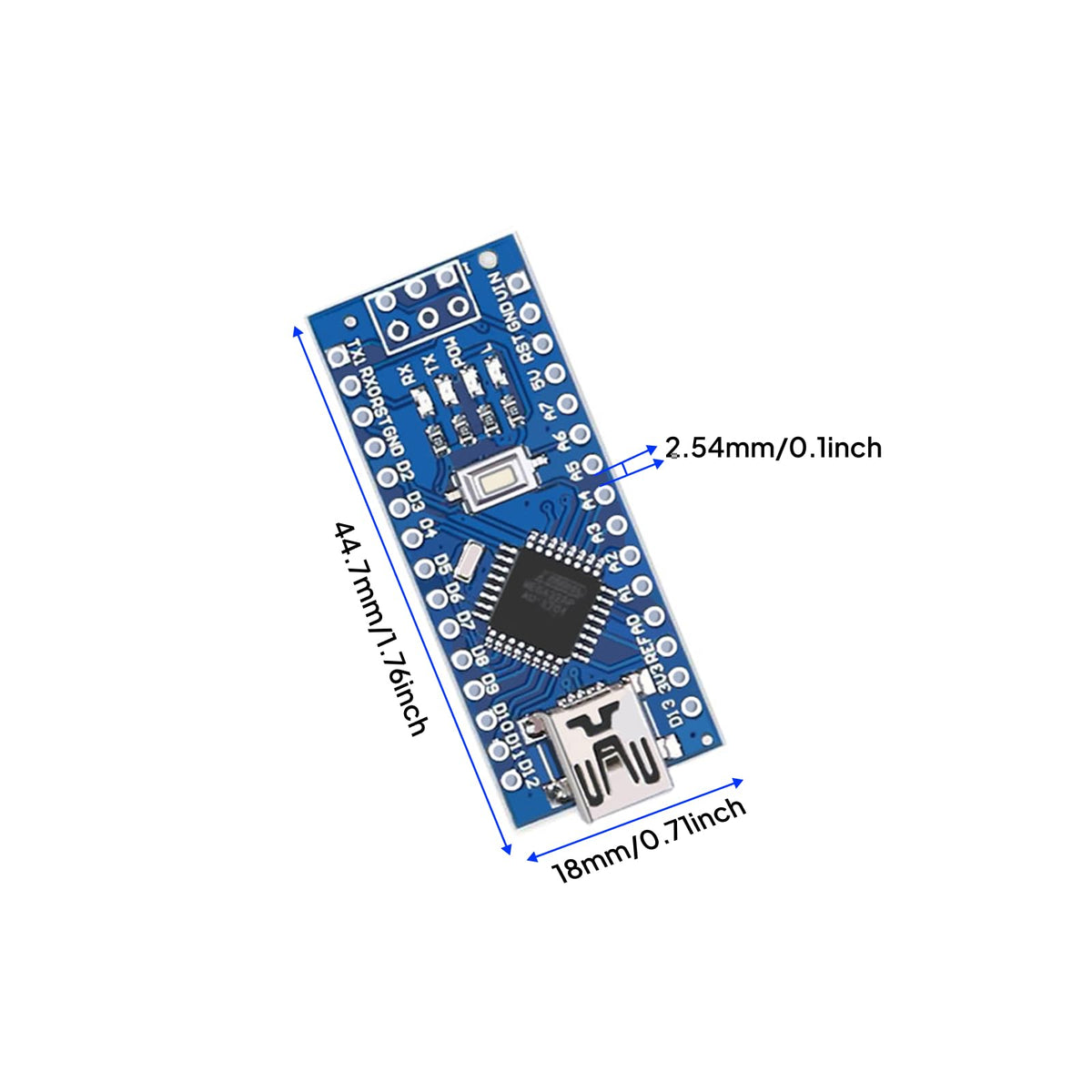

PCB Size: 18 × 45 mm

Weight: 7 g

Technical specs:

  • Microcontroller: ATmega328P; Architecture: AVR
  • Operating Voltage: 5 V;
  • Flash Memory: 32 KB of which 2 KB used by bootloader
  • SRAM: 2 KB; EEPROM: 1 KB
  • Clock Speed: 16 MHz; Analog I/O Pins: 8
  • DC Current per I/O Pins: 40 mA (I/O Pins)
  • Input Voltage: 7-12 V; Power Consumption: 19 mA
  • PWM Output: 6; Digital I/O Pins: 14
ELEGOO UNO R3 Board ATmega328P
ELEGOO Tumbller Self-Blancing Robot Car Kit Compatible with Arduino
ELEGOO UNO Project Smart Robot Car Kit V 4.0 with Tutorial based on Arduino
ELEGOO UNO R3 Project Complete Starter Kit with Tutorial for Arduino (63 Items)
ELEGOO Mega Project The Most Complete Starter Kit w/Tutorial for Arduino
ELEGOO UNO Project Super Starter Kit with Tutorial for Arduino
Customer Reviews
4.7 out of 5 stars 5,052
4.4 out of 5 stars 315
4.5 out of 5 stars 4,501
4.7 out of 5 stars 3,488
4.7 out of 5 stars 8,019
4.7 out of 5 stars 16,625
Price $16.99 $65.99 $79.99 $59.99 $65.99 $45.99
Controller Board UNO R3 NANO UNO R3 UNO R3 MEGA UNO R3
Compatibility with Arduino ✓ ✓ ✓ ✓ ✓ ✓
Projects Tutorial Included ✓ ✓ ✓ ✓ ✓ ✓
Assembly Requirement No ✓ ✓ No No No
Reasons to Buy The Same ATmega328P with Arduino UNO R3 Board; the same ATmega16U2 with Arduino Stand up by itself, Obstacle-Avoidance, Auto-follow ELEGOO EleRobot APP; FPV Mode; Obstacle Avoidance; Line Tracking Mode Tutorial of 33 Projects, Complete Stater Kit with UNO R3 Tutorial of 33 Projects, Powerful Mega R3 Control Board Tutorial of 24 Projects, Cost-effetive Starter Kit
  • THREE PRESOLDERED USB-C BOARDS FOR MORE PROJECTS - Keep one Nano on a breadboard, embed another in a robot or sensor node and reserve the third for testing; one USB-A to USB-C data cable is included for programming, while jumper wires, sensors and breadboards are sold separately
  • ATMEGA328P PERFORMANCE IN A COMPACT FORMAT - Run familiar 5 V, 16 MHz AVR sketches with 32 KB flash, 2 KB SRAM and 1 KB EEPROM, plus 14 digital I/O pins, 6 PWM outputs and 8 analog inputs for LEDs, buttons, displays, sensors, motor drivers and data logging
  • CH340 USB SETUP WITH PRACTICAL UPLOAD GUIDANCE - Install the CH340 driver if no serial port appears, select Nano and the correct COM port, then upload a Blink test; use the included USB-A to USB-C cable because the current board 𝐝𝐨𝐞𝐬 𝐧𝐨𝐭 𝐬𝐮𝐩𝐩𝐨𝐫𝐭 𝐔𝐒𝐁-𝐂 𝐭𝐨 𝐔𝐒𝐁-𝐂 𝐡𝐨𝐬𝐭 𝐜𝐚𝐛𝐥𝐞𝐬
  • PRESOLDERED HEADERS SAVE BREADBOARD SPACE - The 18 × 45 mm footprint arrives ready to plug into a solderless breadboard, while UART, I2C and SPI support serial modules, displays, storage and sensors without soldering header pins before the first project
  • POWER AND MODEL EXPECTATIONS - Use USB-C, 7-12 V VIN or a regulated 5 V input, share ground and drive motors or relays through suitable modules; this classic Nano V3-style board has no Wi-Fi, Bluetooth or features from Nano Every, Nano 33, Nano ESP32 or Nano R4
